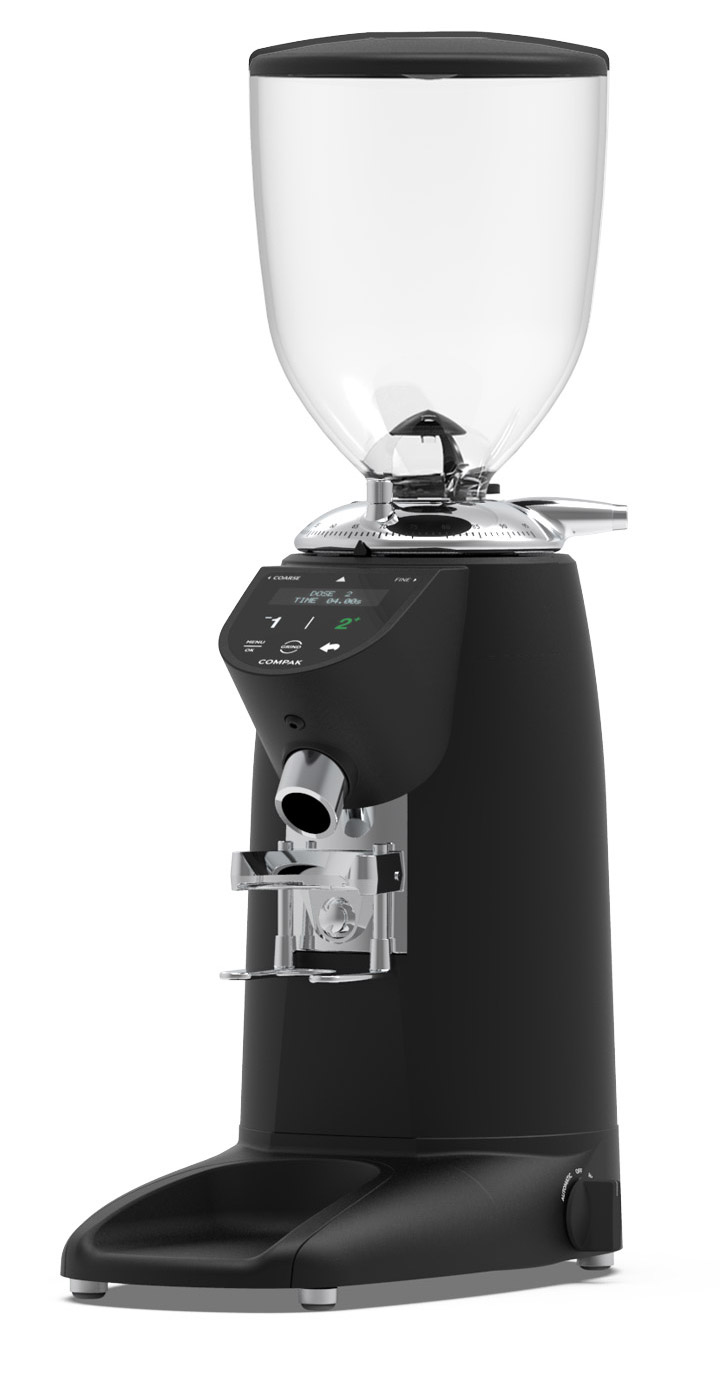

E10 Conic

E10 Conic

Innovation intersects tradition

Key specifications

Motor output 800 W
Revolutions per minute 317,5 rpm
Ø Burrs Conic 68 mm
Espresso point production 15 Kg/h
Time x dosis Espresso (7 g) 1,9 s
Hopper capacity 1.700 g
Height x width x depth 635 x 215 x 400 mm
Net weight 16,93 Kg

Key features

"Parallel System" grind regulator lock

1 or 2 On-Demand ground coffees

Touch control screen

Electronic fan

Three positions switch with by-pass

Universal adjustable height porta filter holder

Electronic features

Multilanguage display

3 Modes: Pre-selection - Automatic - Instant

Protection menu access by password

Total and partial shot counter

Notice of change of burrs

Quantity lock configurable by weight ground


Motor 800 W with reduction to 350 rpm

Powerful motor that allows you to work continuously in situations of high demand, maintaining all the properties of the coffee thanks to the cold grinding at low revolutions.

Conical 68 mm burrs

Ensures accurate particle size for Espresso and spectacular productivity: 7 g in 1.6 seconds. Special pre-wear treatment is applied to ensure optimal performance from the first use. Durability of 1.200 Kg.

LCD Display

Multilanguage. Changing burrs alarm.
3 Modes: Pre-selection, Automatic and Instant. Refill Button. Absolute and relative coffees counting. Activate pad and end of service sound. Password.

Electronic fan

Incorporates an electronic fan on top of the body that maintains a cool flow of air at all times.

Continuous micrometric adjustment system Parallel

Set the grind point with maximum precision in a very simple and intuitive way. The new Parallel locking system provides an extra level of security ensuring parallel positioning between burrs at all times.

Coffee outlet enlightened with LEDS

Low consumption LED technology, which will allow the final user to have a greater visibility in their working area.

Accurate dosing.
Average grinding Speed*: 4g/s

* Based on a medium-roasted coffee and an Espresso grind. May vary depending on the degree of fineness.

Universal fork

Perfect fit for the most common portafilter sizes, which also allows for hands-free usage.

Heavy duty power switch

Unlimited uses are guaranteed with this “three positions” switch offering a Total control to the Barista without been necessary to use the electronical system of the grinder.


Burrs Red Speed Lucidate Conic

Lower friction, lower temperature. Upon this premise, we have developed Lucidate Speed Red burrs. Even after 8.000 Kg of coffee, the burrs will perform as if it were their first day of use thanks to the low coefficient of friction and specially hardened material. Burrs RS Lucidate.

TFT Touchscreen

TFT Touchscreen with option to configure from 1 to 3 doses.

Fixed tamper 58 or 53 mm

The traditional system. Built in aluminum.

Portafilter detector

Detection of the double dose through the sensor ring placed on the portafilter.

Technical data files


ETL Listed
ETL Sanitation
Food Contact
KC Certification
