Innovation intersects tradition

Key specifications

Motor output 610 W
Revolutions per minute 1290 rpm
Ø Burrs 64 mm
Espresso point production 6 Kg/h
Time x dosis Espresso (7 g) 1,9 s
Hopper capacity 1.700 g
Height x width x depth 680 x 215 x 400 mm
Net weight 11,58 Kg

Key features

"Parallel System" grind regulator lock

1 or 2 On-Demand ground coffees

Recognition of up to 10 portafilters

Hands free for the barista

Touch control screen

Motor with fan

Three positions switch with by-pass

Electronic features

Multilanguage display

4 Modes: Pre-selection - Automatic - Instant - Manual

Protection menu access by password

Total and partial shot counter

Notice of change of burrs

Quantity lock configurable by weight ground


Motor 610 W to 1.300 rpm

Powerful motor that allows you to work continuously in situations of high demand, maintaining all the properties of the coffee thanks to the cold grinding at low revolutions.

Flat 64 mm burrs

Ensures accurate particle size for Espresso and spectacular productivity: 7 g in 2.1 seconds. Special pre-wear treatment is applied to ensure optimal performance from the first use. Durability of 500 Kg.

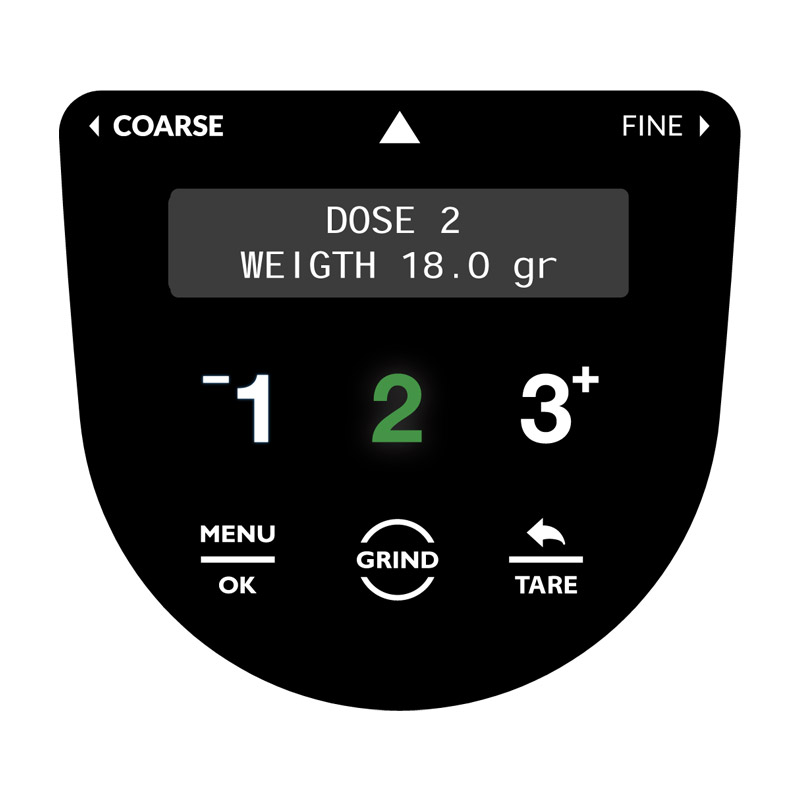

LCD Display Essential DBW

Multilanguage. Changing burrs alarm.
4 Modes: Pre-selection, Automatic, Instant and Manual. Refill Button. Absolute and relative coffees counting. Activate pad and end of service sound. Password.

Continuous micrometric adjustment system Parallel

Set the grind point with maximum precision in a very simple and intuitive way. The new Parallel locking system provides an extra level of security ensuring parallel positioning between burrs at all times.

Accurate dosing.
Average grinding Speed*: 4g/s

* Based on a medium-roasted coffee and an Espresso grind. May vary depending on the degree of fineness.

Dose by weight

Scale. Consistently accurate doses.
Dosing by a pre-set weight. Forget about dosing by timer or dosing by volume.

Three position switch

Offers total control to the Barista without been necessary to use the electronical system of the grinder.


Burrs Red Speed Lucidate Conic

Lower friction, lower temperature. Upon this premise, we have developed Lucidate Speed Red burrs. Even after 8.000 Kg of coffee, the burrs will perform as if it were their first day of use thanks to the low coefficient of friction and specially hardened material. Burrs RS Lucidate.

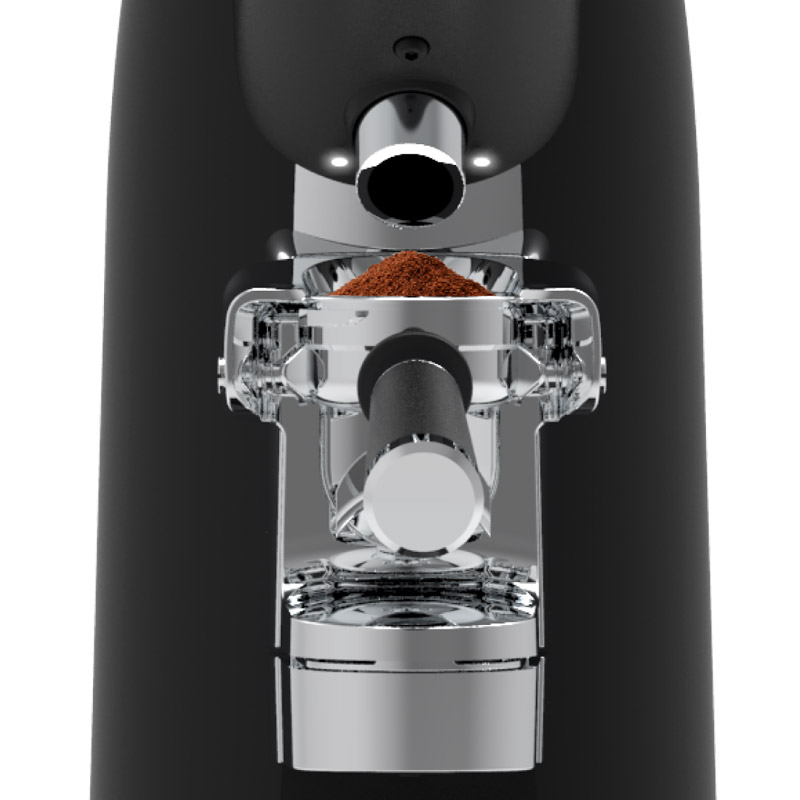

Coffee outlet enlightened with LEDS

Low consumption LED technology, which will allow the final user to have a greater visibility in their working area.


Technical data files


ETL Listed
ETL Sanitation
Food Contact
KC Certification
