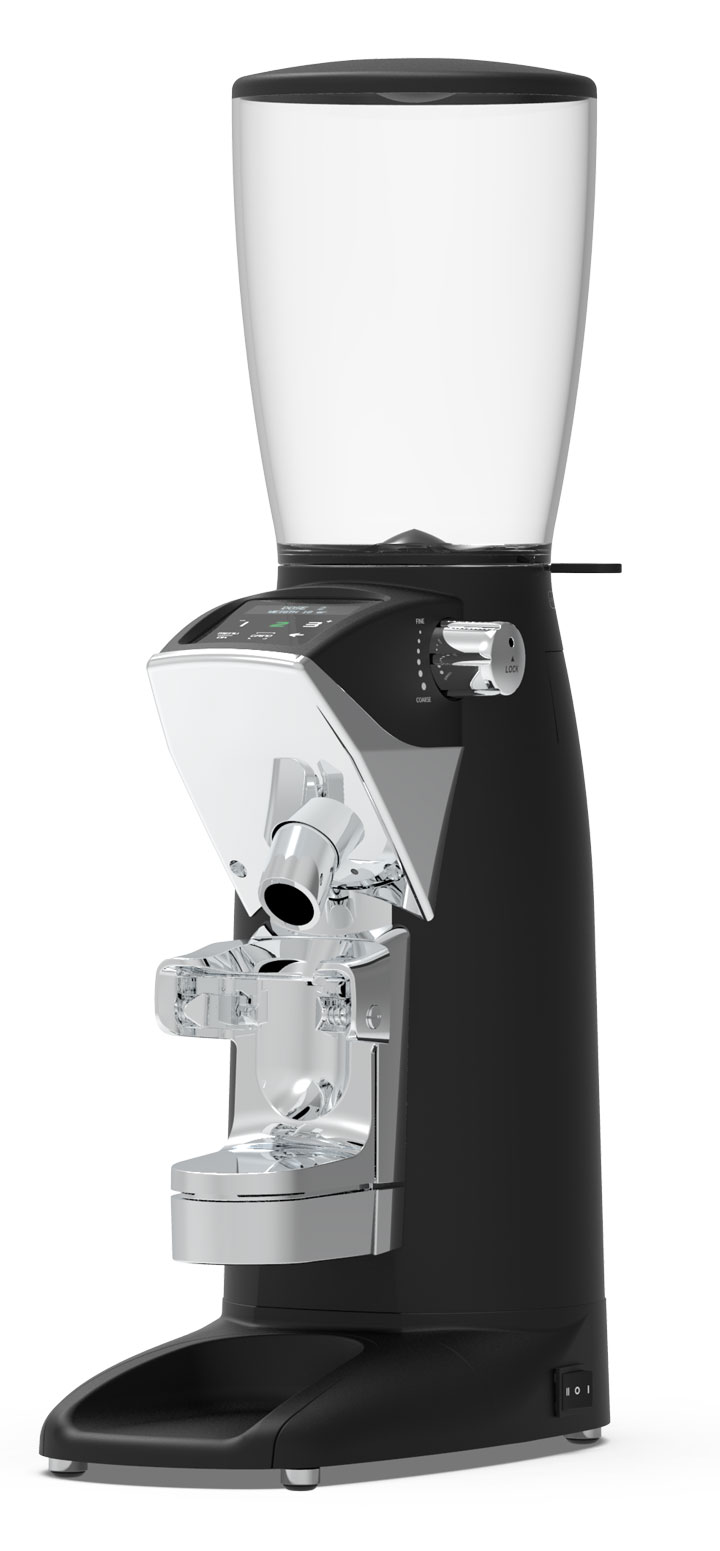

F8 DBW

F8 DBW

Grinding to the next level

Key specifications

Motor output 610 W
Revolutions per minute 1.290 rpm
Ø Burrs 83 mm
Espresso point production 15 Kg/h
Time x dosis Espresso (7 g) 1,6 s
Hopper capacity 1.900 g
Height x width x depth 710 x 215 x 400 mm
Net weight 13 Kg

Key features

Bean flow control via high precision auger

1 or 2 On-Demand ground coffees

Recognition of up to 10 portafilters

Hands free for the barista

Precise dosing

Push button "Grind" for manual dosing

Motor with fan

Three positions switch with by-pass

Electronic features

Multilanguage display

4 Modes: Pre-selection - Automatic - Instant - Manual

Protection menu access by password

Total and partial shot counter

Notice of change of burrs

Digital grind point scale display

Features

Motor 730 W to 1.350 rpm

Powerful motor that allows you to work continuously in situations of high demand, maintaining all the properties of the coffee thanks to the cold grinding at low revolutions.

Flat 83 mm burrs

Ensures accurate particle size for Espresso and spectacular productivity: 7 g in 1.6 seconds. Special pre-wear treatment is applied to ensure optimal performance from the first use. Durability of 800 Kg.

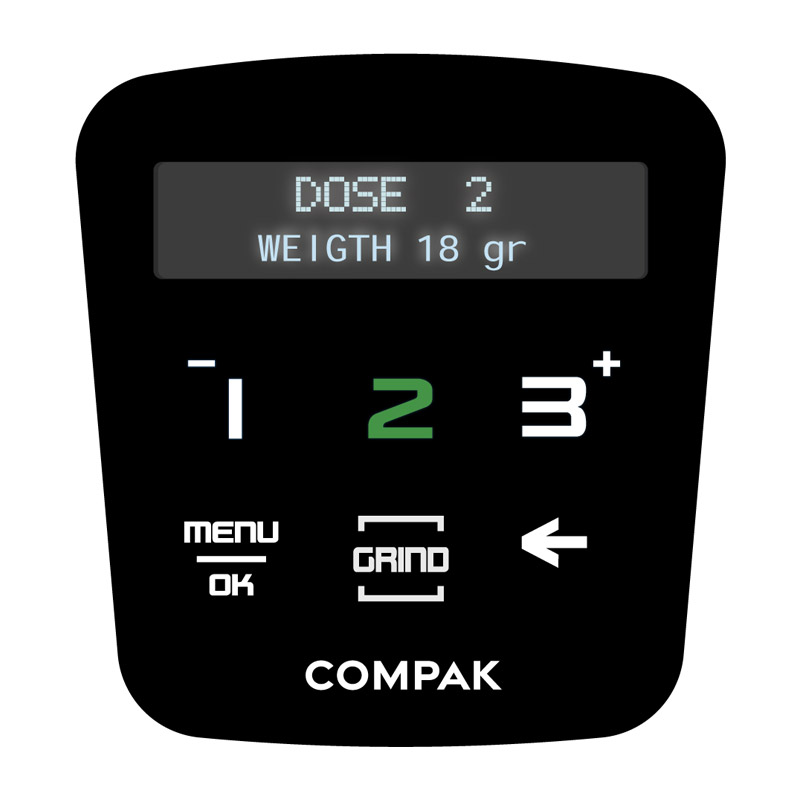

Multifuntion Display with LCD Fresh DBW

Multilanguage. Changing burrs alarm.
4 Modes: Pre-selection, Automatic, Instant and Manula. Grinding adjustment visualization. Refill Button. Absolute and relative coffees counting. Activate pad and end of service sound. Password.

Micrometric grinding setting system with endless gear

Perfect and accurate grinding adjustment using a handy and ergonomic side knob, provided by a high precision ring gear and endless worm.

Accurate dosing.
Average grinding Speed*: 4,5g/s

* Based on a medium-roasted coffee and an Espresso grind. May vary depending on the degree of fineness.

Dose by weight

Scale. Consistently accurate doses.
Dosing by a pre-set weight. Forget about dosing by timer or dosing by volume.

Three position switch

Offers total control to the Barista without been necessary to use the electronical system of the grinder.

Options

Burrs Red Speed Lucidate

Lower friction, lower temperature. Upon this premise, we have developed Lucidate Speed Red burrs. Even after 3.000 Kg of coffee, the burrs will perform as if it were their first day of use thanks to the low coefficient of friction and specially hardened material.

Fixed tamper 58 or 53 mm

The traditional system. Built in aluminum.

Technical data files

Certifications

CE
ETL Listed
ETL Sanitation
Food Contact
roHS
KC Certification
IECEE
