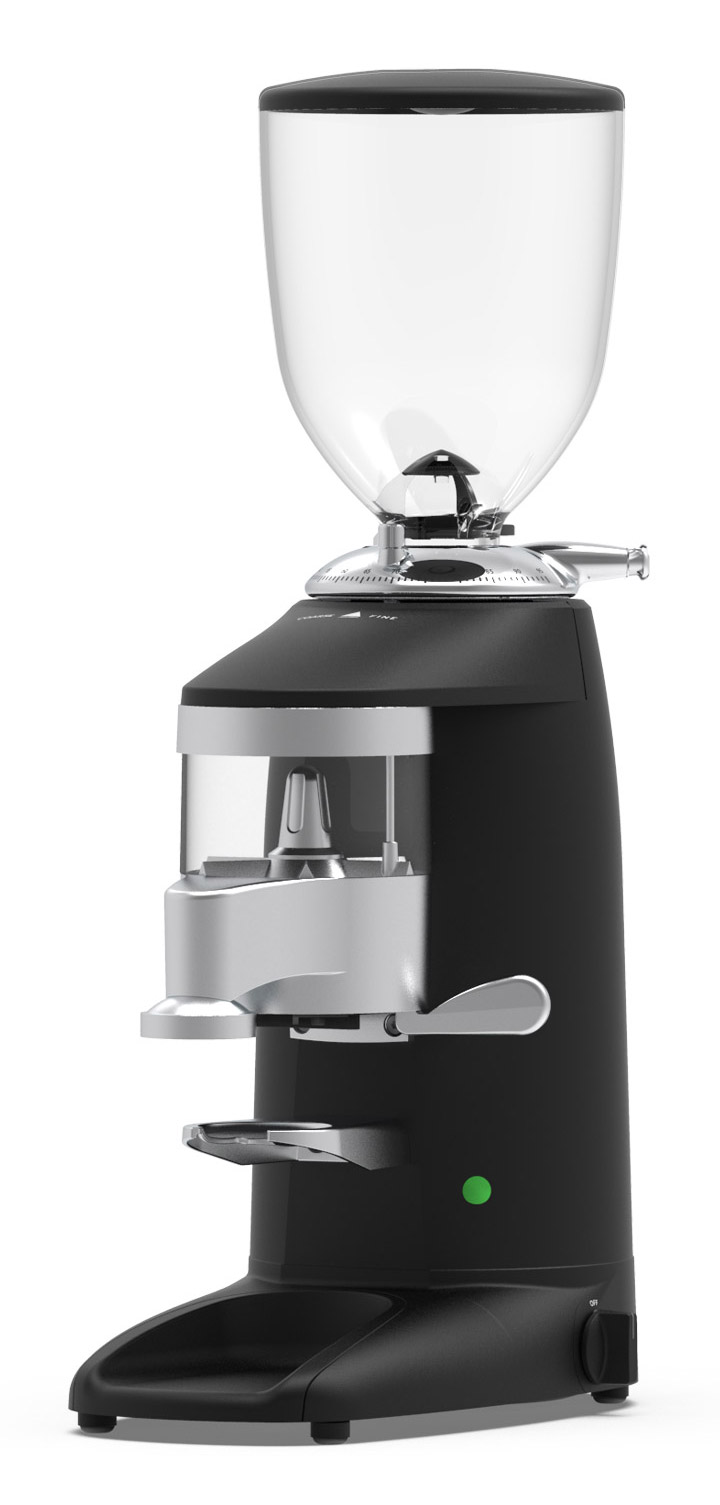

K10 Master Conic

K10 Master Conic

The classics

Key specifications

Motor output 950 W
Revolutions per minute 342,5 rpm
Ø Burrs Conic 68 mm
Espresso point production 17 Kg/h
Hopper capacity 1.700 g
Height x width x depth 680 x 215 x 400 mm
Net weight 20,5 Kg

Key features

"Parallel System" grind regulator lock

8 cm height riser with side air vents

Double fan cooling system

Aluminum star doser with high efficiency sweepers

Full aluminum grinding collar adjustment

Aluminum portafilter rest

High resistance power switch

Illuminated On/Off switch

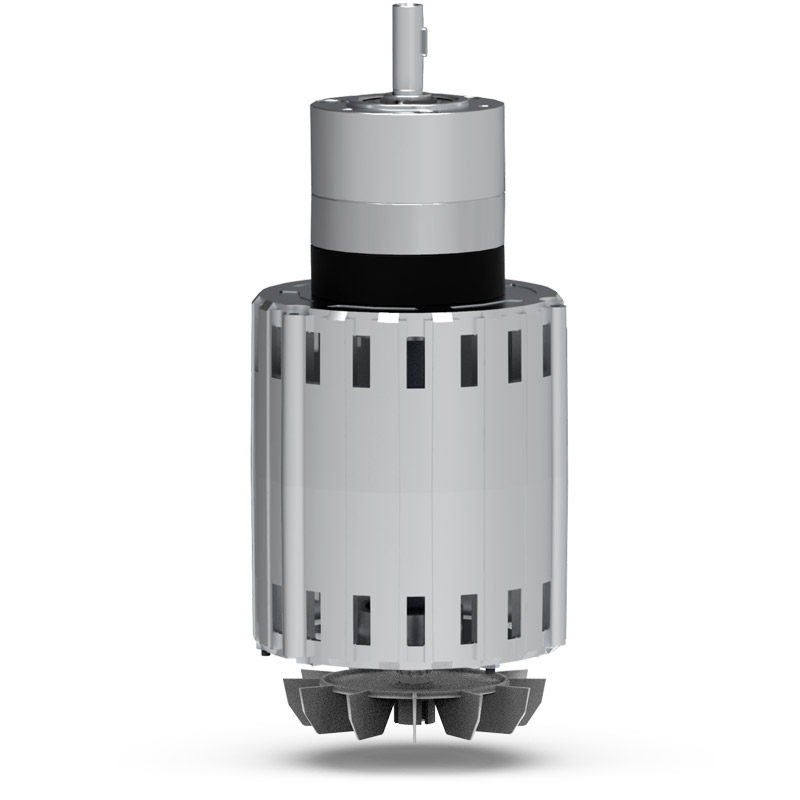

Motor 950 W with reduction
to 350 rpm

Powerful motor that allows you to work continuously in situations of high demand, maintaining all the properties of the coffee thanks to the cold grinding at low revolutions.

Conical 68 mm burrs

Ensures accurate particle size for Espresso and spectacular productivity: 7 g in 1.6 seconds. Special pre-wear treatment is applied to ensure optimal performance from the first use. Durability of 1.200 Kg.

Double Ventilation System

It incorporates one fan under the motor and one on the upper body to help maintain a low temperature in the most demanding situations.

Continuous micrometric adjustment system Parallel

Set the grind point with maximum precision in a very simple and intuitive way. The new Parallel locking system provides an extra level of security ensuring parallel positioning between burrs at all times.

Accurate dosing

Maximum deviation of ± 0.2 g ensures very consistent dose size. Precise dosing.


Auto refill system, ensuring ground coffee ready for service automatically as well as high dosing consistency between shots.

Full aluminum doser with fixed tamper

Full aluminum grinding collar adjustment, fork and doser set.

Heavy duty power switch

Unlimited uses are guaranteed with this switch.

Technical data files


ETL Listed
ETL Sanitation
Food Contact
KC Certification
