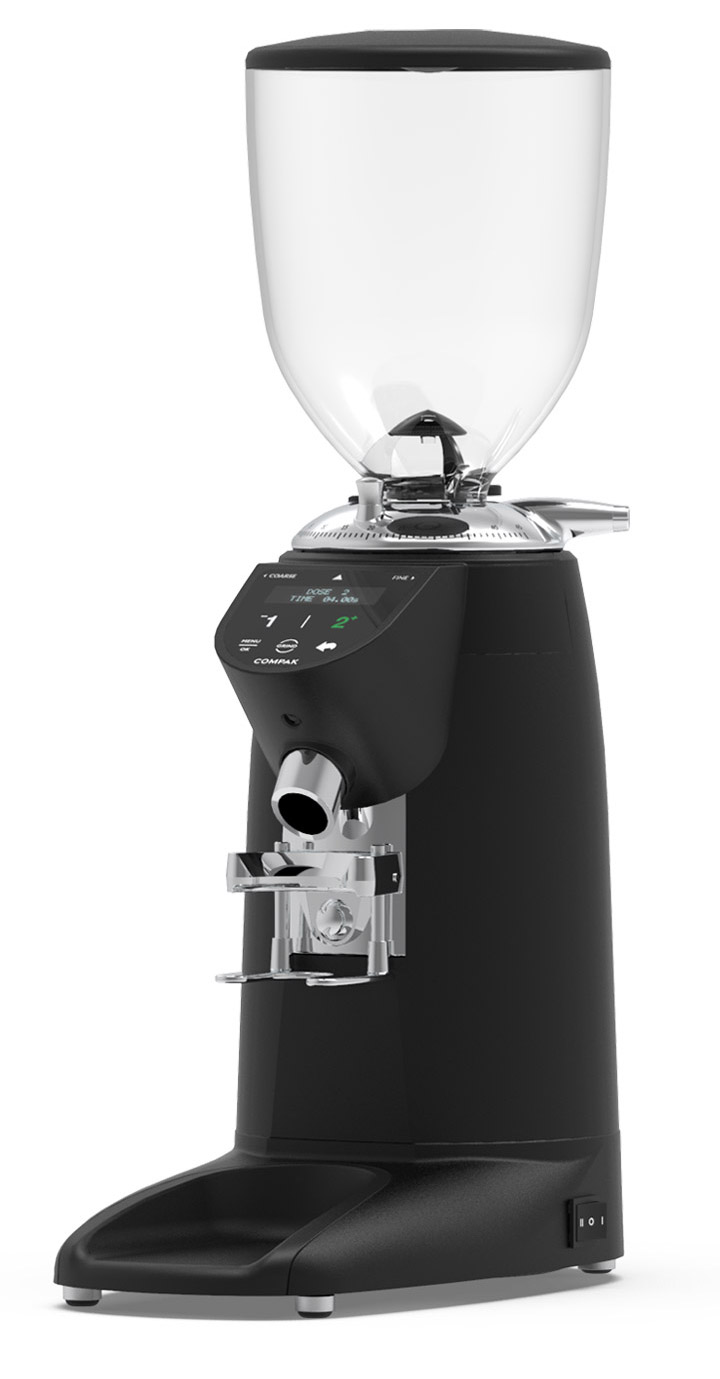

E8 OD

E8 OD

Innovation intersects tradition

Key specifications

Motor output 630 W
Revolutions per minute 1.310 rpm
Ø Burrs 83 mm
Espresso point production 4,2 g/s
Hopper capacity 1.250 g
Height x width x depth 600 x 230 x 385 mm
Net weight 15,36 kg

Key features

Micrometric Parallel System adjustment

Direct access to the grinding chamber

Coffee outlet enlightened with leds

Motor with fan

Adjustable fork in height and depth

Front-mounted refill button

Electronic features

2.8” High Tech touchscreen

Multilanguage display

Portafilter detector

Menu access protection with password

Dose counter, both absolute and relative

Wear and changing burrs alarm

Screensaver

Wireless firmware update

Features

Motor 630 W to 1.310 rpm

Powerful motor that allows you to work continuously in situations of high demand, maintaining all the properties of the coffee.

Flat 83 mm burrs

Made of high-durability tempered steel (100Cr6).
Ensures accurate particle size for Espresso and spectacular productivity.
Durability: 800 Kg.

2.8” High Tech touchscreen

Multilingual, with burr change alarm, screensaver, and total and partial dose counters. Access protection with a password.

Direct access to the grinding chamber

Cleaning or changing burrs without losing the adjustment. Micrometric Parallel System regulation.

2 front LEDs

Illuminate the portafilter and flash once the dose has been dispensed

Front-mounted refill button

Adjustable portafilter support
Height and depth

Perfect fit for the most common portafilter sizes, which also allows for hands-free usage.

Options

Lock & Load System

Instant access to the grinding chamber by simply moving two levers. Cleaning or changing the burrs without losing the adjustment.

Burrs Red Speed

Low coefficient of friction and specially hardened material. Reduces heat generation.
Ø 83 mm: 5.000 Kg

Built-in tamper

Ø 58/53 portafilters

Back leds and fan

Leds to illuminate the rear image and additional fan to maintain a cool flow of air at all times.

Slim base

Aluminum hopper base

Capacity: 1.250 g.

Hopper 1.250 g

Smoked hopper 1.250 g

Hopper 700 g

Hopper 400 g

110 V version

Portafilter detector

Detection of the double dose through the sensor ring placed on the portafilter.

Customizations

Grinder body color

Check our conditions.

Mat case

Polished aluminium case

Customizable hopper

It can be personalized with sheets in the front and back spaces.
Capacity: 1.800 g.

Vinyl customizable hopper

Allows for all kinds of images to be added for a 360° view.
Capacity: 1.800 g.

Back logo customization

It can be adapted to any image.

Essential

Innovation intersects tradition

Compak Essential

2.8” High Tech
Touchscreen

The interface on our 2.8" High Tech touchscreen allows you to control all the variables for a perfect grinding experience.

It includes grinding time, working modes, statistics, and much more.

Compak Essential Compak Essential

Key features

Absolute and relative dose statistics are displayed and can be reset.

Burrs wear control with a configurable alarm for monitoring.

Option to activate a screensaver and configure its activation time.

Wireless firmware update of the grinder.

Compatible hoppers

Lock & Load System

Instant access to the grinding chamber by simply turning the rear lever for quick, easy, and hassle-free cleaning or burr replacement.

Optimal distribution of ground coffee

The vertical and horizontal movement of the portafilter fork allows it to be adjusted to all portafilters on the market.

Burrs features

Made of high-durability tempered steel (100Cr6).

Food-grade material.

Enhance the durabilit y of standard steel burrs.

Reduction in decibels during grinding thanks to the optimization of the burrs’ geometry.

Customize your grinder

A touch of c olor in ever y grind.
Choose your preferred shade for your grinders body from the entire RAL range.

Technical data files

Certifications

CE
ETL Listed
ETL Sanitation
Food Contact
roHS
KC Certification
IECEE
