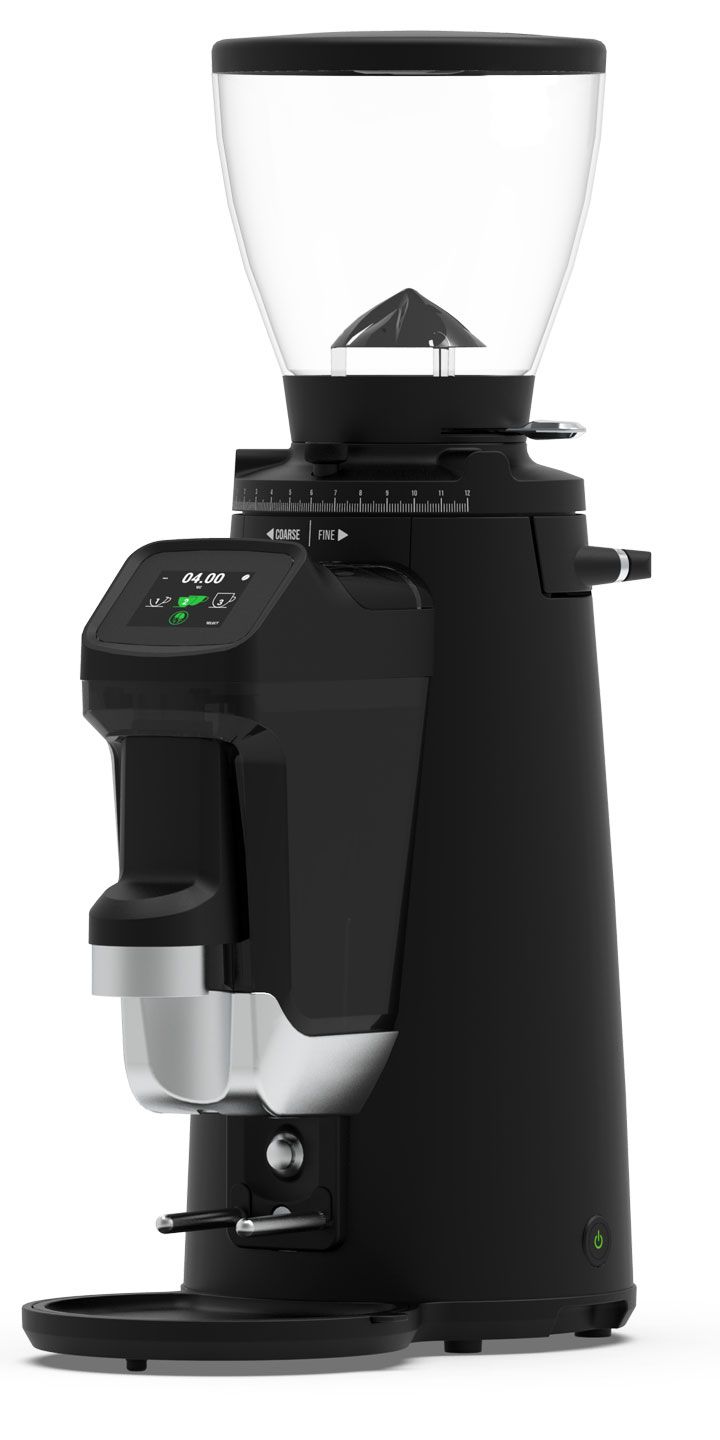

Bolt 64
Instant speed. Everyday versatility.
BOLT 64 brings the speed of Instant Dose technology to a versatile professional espresso grinder. The next dose is kept ready during busy service, allowing the barista to keep the workflow moving without waiting for the grinder.
Its dual Pre-Dose and On Demand operation adapts naturally to changing service volumes, while 64 mm flat burrs deliver consistent grinding performance throughout the day.
Key specifications
| Motor output | 630 | W |
| Revolutions per minute | 1.310 | rpm |
| Ø Burrs | 64 | mm |
| Espresso point production | 2,8 | g/s |
| Hopper capacity | 1.250 | g |
| Height x width x depth | 660 x 230 x 385 | mm |
| Net weight | 16,69 | Kg |
Highlighted elements
Predose Mode
Selection of 1 or 2 coffees previously ground
Fresh Mode
Selection of 1, 2 or 3 ground doses on demand
Technical data files
Key features
Micrometric Parallel System adjustment
Direct access to the grinding chamber
(LLS optional)
Motor with fan
Adjustable fork in height
Electronic features
2.8” TFT touchscreen
Multilanguage display
Portafilter detector
Menu access protection with password
Dose counter, both absolute and relative
Wear and changing burrs alarm
Screensaver
Options
Burrs Red Speed
Low coefficient of friction and specially hardened material. Reduces heat generation.
Ø 64 mm: 2.500 Kg
Pro Barista version
Without tamper.
Back leds and fan
Leds to illuminate the rear image and additional fan to maintain a cool flow of air at all times.
Aluminum hopper base
Capacity: 1.250 g.
Smoked hopper
Coffee protection from any external light.
Capacity: 1.250 g.
Portafilter detector
Detection of the double dose through the sensor ring placed on the portafilter.
Customizations
Grinder body color
Check our conditions.
Customizable hopper
It can be personalized with sheets in the front and back spaces.
Capacity: 1.800 g.
Vinyl customizable hopper
Allows for all kinds of images to be added for a 360° view.
Capacity: 1.800 g.
Back logo customization
It can be adapted to any image.
Bolt
Workflow Engineering
2.8” High Tech Touchscreen
The interface on our 2.8” High Tech Touchscreen allows you to control all the variables for a perfect grind.
Grinding time, work modes, statistics, burr wear and much more…
General features
2.8" High Tech
Touchscreen
Multilanguage
display
Menu access protection with password
Dose counter, both absolute and relative
Status and changing burrs alarm
Cleaning mode
Predose mode
Fresh mode
Works modes
Push
Preset dose by selecting icons 1 or 2 on the touchscreen and pressing the lower grind button.
Touch
Preset dose by pressing icons 1 or 2 on the touchscreen.
Detection
The presence of the portafilter detector will dispense dose 2. If no presence is detected, dose 1 will be served.
Statistics
Our software allows viewing the statistics of both absolute and relative served doses, which are resettable.
Alarms
Burr wear control and configurable alarm.
Lock & Load System
Instant access to the grinding chamber for cleaning or replacing the burrs.
Instant Access
Adjustable fork position
Correct distribution of the ground coffee in the portafilter holder. Adjust the height of the fork and the coffee chute outlet.
Coffee tamper and Barista versions
Technical data files
Certifications
